Falkon X2

VIDEO
Standards:
UHD: 2160p60/59.94/50/30/29.97/25/24/23.98
HD: 1080p60/59.94/50/30/29.97/25/24/23.98
1080i60/59.94/50
720p60/59.94/50
Encoding:
H.265/HEVC 4:2:0 | 4:2:2, 8-bit | 10-bit
H.264/AVC 4:2:0, 8-bit
SDR and HDR – HLG or PQ (ST 2084)
Dynamic resolution adjustment
Bitrates:
HD: 300 Kbps to 20 Mbps
UHD: 300 Kbps to 80 Mbps
Constant Bitrate (CBR)
Variable Bitrate (VBR)
Inputs:
12G SDI
HDMI 2.0
AUDIO
Encoding:
AAC-LC
Bitrates:
32 Kbps to 256 Kbps
Mode:
Mono, Stereo
Density:
Up to 4 Stereo or 8 Mono
Inputs:
Embedded over SDI
Embedded over HDMI
NETWORK CONNECTIONS
Cellular:
– 2 x 3G/4G/5G world-wide compliant modems
– Sub 6GHz bands
– SA (Standalone) and NSA (Non Standalone)
– Internal high efficiency antennas (2 x 2 MIMO)
– Add up to two external USB modems or two Haivision Quad
CellLink antennas for a total of 8 additional modems
Ethernet:
1 x Gigabit Ethernet port
– LAN, WAN
– Portable satellite terminal (Ka, Ku)
Wi-Fi:
Wi-Fi 6/6E (2.4GHz, 5 GHz and 6 GHz)
– 802.11a/b/g/n/ac/ax
– Internal high efficiency antennas (2 x 2 MIMO)
– Client & Hot Spot modes
Transport Protocol
SST over Cellular/Ethernet/Wi-Fi (bonding)
SRT over Ethernet

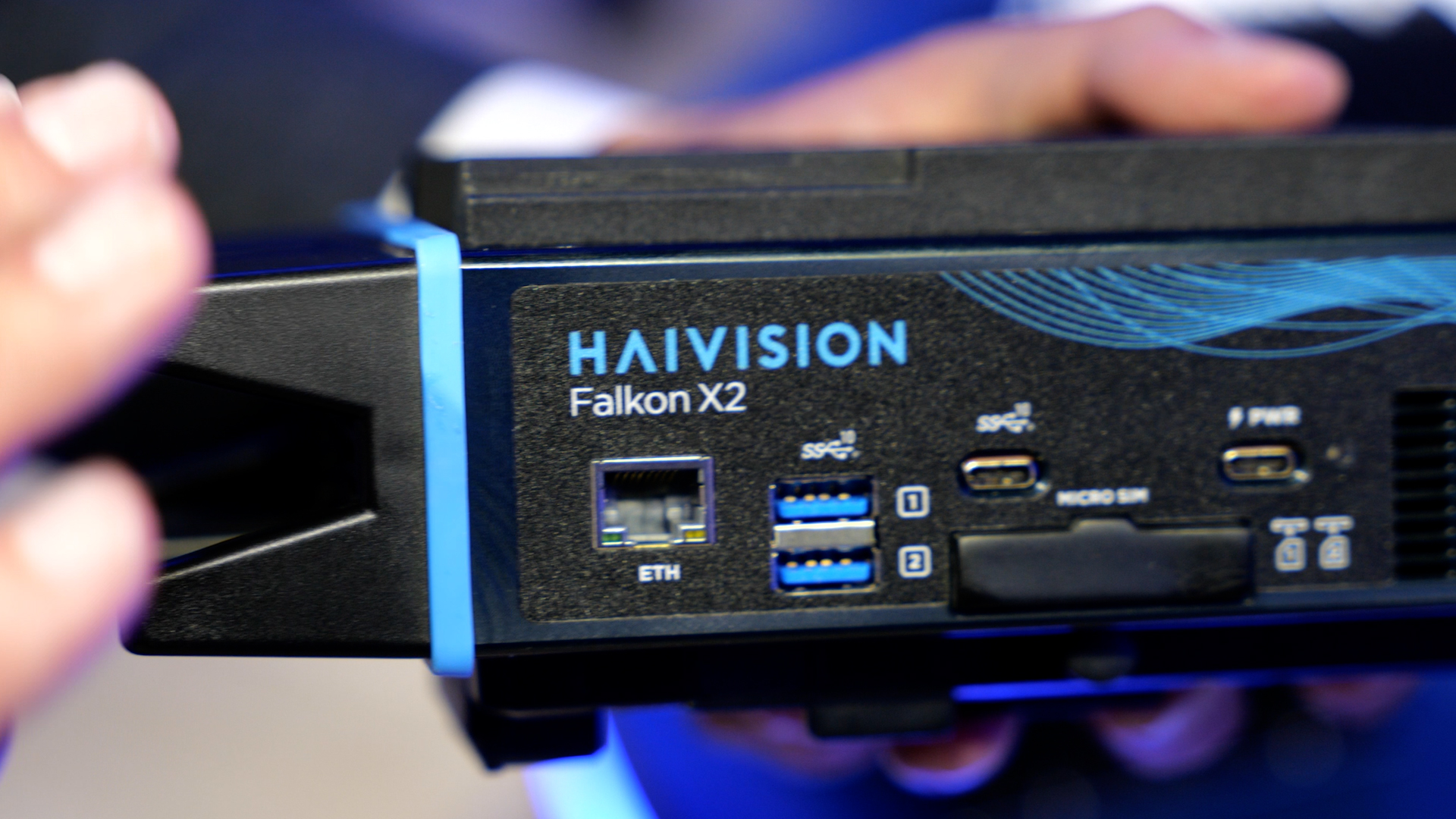

INTERFACES
1 x 12-G SDI input
1 x HDMI 2.0 input
1 x HDMI 2.0 output for video return
1 x Gigabit RJ-45 Ethernet
2 x USB 3.0 (type-A), 1 x USB 3.0 (type-C)
2 x micro SIM slots
1 x mini jack for IFB/intercom headset
ADVANCED FEATURES
Video Encoding:
Video downscaling at a fixed resolution
Streaming:
Sub-second glass-to-glass latency (as low as 100ms on private 5G network,
and 500ms for other networks)
AES encryption of live broadcasts
IP Data Bridge for using the device as a mobile router
Simultaneous live broadcasting and IP traffic (for remote camera control)
Prioritize Network Links (user configurable)
Video Returns:
Full HD video return with AES encryption
Sub-second latency
Video Recording:
Recording to internal memory (128 GB)
Standalone or simultaneous recording during live broadcast
Transfer of files during or after recording
User Interface and Operations:
Video and Audio level preview
Remote dynamic latency adjustment during a live broadcast
Automatic Live Start
Intercom:
Intercom/IFB with AES encryption
Bluetooth or wired headset
Metadata:
Closed Captions EIA/CEA/CTA-608/708
SMPTE-12M timecode passthrough
SMPTE-2038 (transparent carriage of ancillary data)
Geolocation (GPS, Galileo, Glonass, and Beidou)
CONTROL & MONITORING

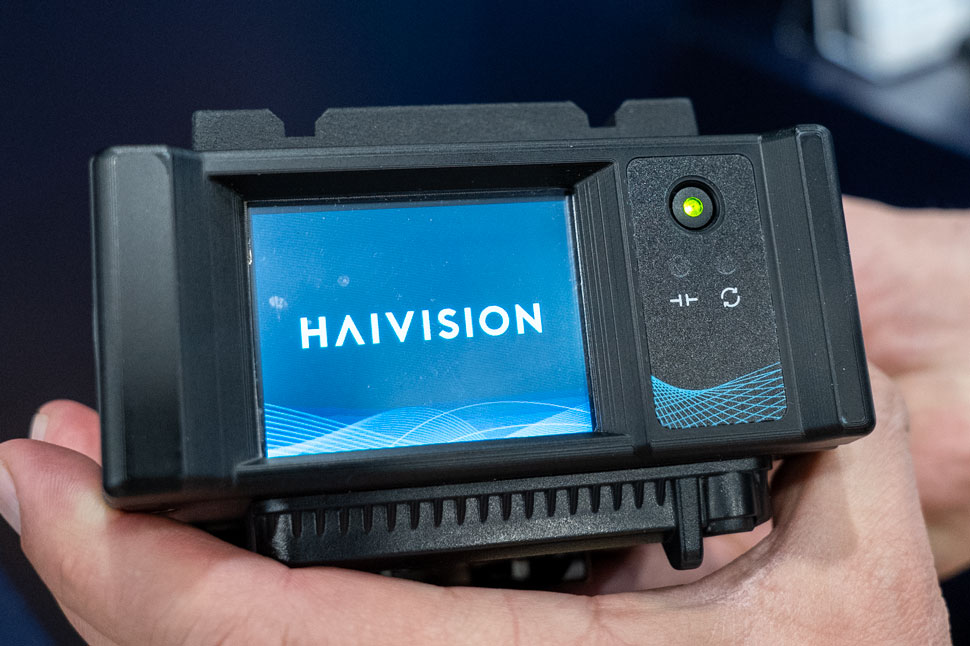

Embedded touch screen
Web UI from any browser
From Haivision Hub 360 and StreamHub transceiver
POWER
Power Supply:
Internal battery for several hours of live broadcast
USB-C input for
– charging the internal battery
– powering the device via an AC/DC adapter (45 W min)
– power the device via a D-TAP cable + external V/G-Mount battery attached
to the device.
PHYSICAL
Dimensions (W x H x D):
20,4 cm x 8,3 cm x 11,3 cm (8.02” x 3.26” x 4.46”) with V-Mount
20,4 cm x 7.6 cm x 11,3 cm (8.02” x 3.00” x 4.46”) with Gold Mount
Weight:
1.2 Kg / 2.6 lbs
Operating Temperature:
-5°C to 45°C (23°F to 113°F)
